扇形噴霧噴嘴

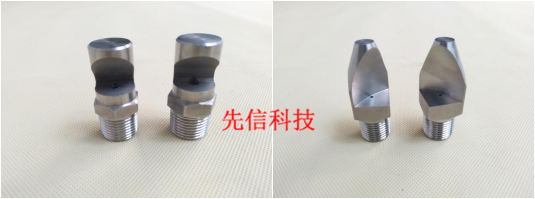

扇形噴霧噴嘴(圖1)


(HU型) (FSUN-S型)


扇形噴霧噴嘴(圖4)

                 (K型)                                                                        (P型)


一般應用:                 主要材質:        鏈接方式:
1、清洗、潤滑                 1、不銹鋼              1、NPT(內或外)
2、冷卻、淬火                 2、黃銅                2、BSPT(內或外)
3、加濕、噴涂                 3、合金
4、水簾、防火                 4、PP
5、高沖擊力洗滌               5、PVDF
性能參數:HU扇形
                              噴霧角度(0.3Mpa壓力下)
120&deg;110&deg;95&deg;80&deg;65&deg;50&deg;45&deg;40&deg;35&deg;25&deg;15&deg;0&deg;
                           備注:可按照客戶要求定制噴霧角度
流量代碼鏈接螺紋噴孔mm                         流量(升/分)
1/81/43/81/20.05Mpa0.1Mpa0.15Mpa  0.2 Mpa0.3 Mpa0.4 Mpa0.5 Mpa0.6 Mpa0.7 Mpa1.0 Mpa3.5Mpa
010.66  0.230.280.320.390.460.510.560.600.721.3
0150.79  0.340.400.480.590.680.760.840.901.12.0
020.91  0.460.560.640.790.911.01.11.21.42.7
031.10.480.680.830.971.21.41.51.71.82.24.0
041.30.650.911.11.31.61.82.02.22.42.95.4
051.40.801.11.31.62.02.32.52.83.03.66.7
061.60.971.41.71.92.42.73.13.33.64.38.1
081.81.31.82.22.63.23.64.14.54.85.810.8
102.01.52.32.83.23.94.65.15.66.07.213.5
152.42.53.44.24.65.96.87.68.49.010.820
202.83.24.65.66.57.99.110.211.212.114.427
303.64.86.88.39.711.813.715.316.718.12240
40  4.06.59.111.112.915.818.22022242954
50  4.48.011.414.016.119.7232528303668
60  4.89.713.716.819.324273133364381
70  5.211.21619.62328323639425094
100    6.416.12328.232394651566072135
120    6.717.2273239475561677286162
150    7.5313439485968768490108205
200      8.7394651647991102112121144270
備注:120度流量代碼最大到10
110度流量代碼最大到50
95度流量代碼最大到200

性能參數:扇形噴嘴 -- K系列
流量代碼鏈接尺寸孔徑mm         流量(升/分鐘)噴流角度壓力Mpa
1/81/43/81/23/40.050.070.10.150.20.30.40.050.150.4
0.25        0.41    0.110.140.160.20.23  83&deg;117&deg;
0.50        0.61    0.230.280.320.390.46  89&deg;122&deg;
0.75        0.71  0.290.340.420.480.590.68  106&deg;125&deg;
1        0.84  0.380.460.560.640.790.91  109&deg;128&deg;
1.5        1.00.480.570.680.840.971.21.473&deg;108&deg;125&deg;
2      1.20.640.760.911.11.31.61.883&deg;113&deg;129&deg;
2.5      1.30.810.951.11.41.62.02.398&deg;122&deg;133&deg;
3      1.40.971.11.41.71.92.42.786&deg;112&deg;126&deg;
4      1.71.31.51.82.22.63.23.697&deg;123&deg;132&deg;
5      1.91.61.92.32.83.23.94.6114&deg;128&deg;142&deg;
7.5      2.32.42.93.44.24.85.96.8101&deg;119&deg;134&deg;
10      2.63.23.84.65.66.47.99.1115&deg;133&deg;145&deg;
12      2.93.94.65.56.77.79.510.9128&deg;139&deg;153&deg;
15      3.34.85.76.88.49.711.813.798&deg;113&deg;123&deg;
18      3.65.86.98.21011.614.216.4106&deg;120&deg;131&deg;
20      3.86.47.69.111.212.915.818.2110&deg;122&deg;133&deg;
22        4.07.18.41012.314.217.420113&deg;125&deg;136&deg;
24        4.17.79.210.913.415.518.922115&deg;131&deg;144&deg;
27        4.48.710.312.315.117.42125119&deg;135&deg;148&deg;
30        4.69.711.413.716.719.32427100&deg;110&deg;121&deg;
35        5.011.313.31619.5232832105&deg;118&deg;128&deg;
40      5.312.915.318.222263236111&deg;126&deg;136&deg;
45      5.614.517.22125293641115&deg;130&deg;140&deg;
50        6.016.119.12328323946117&deg;131&deg;140&deg;
60        6.519.3232733394755120&deg;134&deg;142&deg;
70        7.123273239455564123&deg;137&deg;146&deg;
80        7.526313645526373127&deg;138&deg;149&deg;
90        8.029344150587182120&deg;133&deg;140&deg;
100        8.432384656647991123&deg;136&deg;145&deg;
110        8.8354250617187100125&deg;138&deg;148&deg;
120        9.3394655677795109129&deg;143&deg;150&deg;
140        10.34553647890111128118&deg;127&deg;135&deg;
160        11.152617389103126146121&deg;130&deg;137&deg;
180        11.5586982100116142164124&deg;133&deg;139&deg;
210        12.3688096117135166191128&deg;139&deg;145&deg;
300        14.797114137167193235275110&deg;128&deg;135&deg;
450        17.9145172205250290335410118&deg;132&deg;138&deg;
性能參數:扇形噴嘴 -- P系列
流量大小 鏈接尺寸 噴孔mm       流量(升/分) 噴流角度 尺寸
1/81/43/81/23/41巴2巴3巴4巴5巴6巴7巴10巴1 巴3巴7巴 偏轉角度 棒材尺寸
5010        2.02.33.23.94.65.15.66.07.231&deg;50&deg;60&deg;60&deg;16
5020      2.85.78.19.911.412.714.015.118.042&deg;50&deg;59&deg;42&deg;19
5040      3.69.112.915.818.22022242947&deg;50&deg;60&deg;45&deg;19
5060        4.813.719.324273133364355&deg;50&deg;53&deg;37&deg;25
50100        6.0233239465156607272&deg;50&deg;55&deg;40&deg;32
50125        6.7284049576470759072&deg;50&deg;59&deg;38&deg;32
50160        7.53652637382899611572&deg;50&deg;55&deg;37&deg;32
50200        8.34664799110211212114472&deg;50&deg;55&deg;32&deg;22
4040        3.69.112.915.818.22022242931&deg;40&deg;50&deg;35&deg;25
4050        4.011.416.119.7232528303631&deg;40&deg;49&deg;33&deg;25
4060        4.413.719.324273133364332&deg;40&deg;49&deg;33&deg;25
4070        5.2162328323639425032&deg;40&deg;49&deg;29&deg;25
4080        5.218.22632364145485832&deg;40&deg;48&deg;26&deg;25
4090        5.6212936414650546534&deg;40&deg;44&deg;28&deg;25
40100        6.0233239465156607235&deg;40&deg;44&deg;28&deg;12
3504        1.20.911.31.61.82.02.22.42.920&deg;35&deg;41&deg;40&deg;16
3510        2.02.33.23.94.65.15.66.07.218&deg;35&deg;39&deg;36&deg;19
3520      2.84.66.49.911.412.714.015.118.024&deg;35&deg;40&deg;30&deg;19
3530        3.26.89.711.813.715.316.718.12224&deg;35&deg;39&deg;28&deg;19
3540        3.69.112.915.818.22022242926&deg;35&deg;41&deg;26&deg;22
3550        4.011.416.119.7232528303628&deg;35&deg;38&deg;23&deg;22
3560        4.413.719.324273133364331&deg;35&deg;38&deg;27&deg;25
3580        5.218.22632364145485829&deg;35&deg;39&deg;24&deg;25
35100        6.0233239465156607226&deg;35&deg;40&deg;19&deg;25
35160        7.53652637382899611526&deg;35&deg;40&deg;23&deg;32
35200        8.34664799110211212114426&deg;35&deg;40&deg;22&deg;32
2540        3.69.112.915.818.22022242915&deg;25&deg;34&deg;25&deg;19
1510        2.02.33.23.94.65.15.66.07.2  15&deg;23&deg;22&deg;16
1520        2.84.66.49.911.412.714.015.118.0  15&deg;19&deg;19&deg;16
1530        3.26.89.711.813.715.316.718.1226&deg;15&deg;24&deg;25&deg;19
1540        3.69.112.915.818.2202224298&deg;15&deg;21&deg;18&deg;22
1550        4.411.416.119.723252830369&deg;15&deg;20&deg;15&deg;22
1560        4.813.719.324273133364310&deg;15&deg;19&deg;14&deg;25
1580        5.218.22632364145485811&deg;15&deg;18&deg;14&deg;25
15100        6.0233239465156607211&deg;15&deg;18&deg;14&deg;25
15200        8.34664799110211212114412&deg;15&deg;18&deg;14&deg;32
性能參數:燕尾槽組合式扇形噴嘴 -- FSUN系列
鏈接尺寸噴射角度(0.5mpa下)孔徑mm        流量(升/分鐘)壓力Mpa
3/83/41-1/420&deg;,30&deg;,45&deg;,60&deg;,75&deg;,90&deg;,120&deg;0.05Mpa0.1 Mpa0.2 Mpa0.3 Mpa0.5 Mpa1 Mpa
噴嘴型號
   FSUN-S-0.60.80.20.30.40.50.60.9
   FSUN-S-11.00.30.50.60.81.01.4
   FSUN-S-1.51.20.51.71.01.21.52.1
   FSUN-S-21.40.60.91.31.62.02.8
   FSUN-S-2.51.50.81.11.61.92.53.5
   FSUN-S-31.71.01.31.92.33.04.2
   FSUN-S-4201.31.82.53.14.05.6
   FSUN-S-52.21.52.23.23.95.07.1
   FSUN-S-62.51.92.73.84.66.08.5
   FSUN-S-7.52.72.43.44.75.87.510.6
 FSUN-S-103.03.24.56.37.810.014.1
 FSUN-S-133.54.15.88.210.113.018.4
 FSUN-S-164.05.17.210.112.416.022.6
 FSUN-S-204.56.38.912.715.520.028.3
 FSUN-S-255.07.911.215.819.425.035.4
   FSUN-S-325.510.114.320.224.830.045.3
   FSUN-S-406.012.717.925.331.040.056.6
   FSUN-S-507.015.822.431.638.750.070.7
 FSUN-S-638.019.928.239.848.863.089.1
 FSUN-S-809.025.335.850.662.080.0113.1
 FSUN-S-10010.031.644.763.277.5100.0141.1
 FSUN-S-13011.041.458.182.2100.7130.0183.8
 FSUN-S-16012.050.071.6101.2123.9160.0226.3
 FSUN-S-20013.063.289.4126.5154.9200.0282.8
 FSUN-S-25015.079.1111.8158.1193.7250.0353.6
注:1、如果焊接底座需要特殊長度,請另外標注。
2、我公司還可以提供帶圓弧的焊接底座,如需要,請與我公司聯系。
3、FSUN-S系列噴嘴,燕尾槽位置與扇面之間存在角度偏轉,方便噴嘴排布,以實現均勻的噴射面。

3/8英寸的噴嘴:        偏轉角度為5&deg;
3/4英寸的噴嘴:        偏轉角度為55&deg;
1-1/4英寸的噴嘴:       偏轉角度為15&deg;
